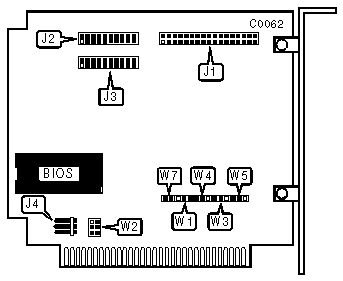

DTC5150CR, DTC5150CRH, DTC5160CR, DTC5160CRH Hard Disk/Floppy Controller Settings and Configuration

CONNECTIONS
Function	Location
34-pin control cable connector-hard drive	J1
20-pin data cable connector-drive 0	J2
20-pin data cable connector-drive 1	J3
5-pin connector-DC power	J4

BIOS ADDRESS
Address		W2/jumper 1	W2/jumper 2	W2/jumper 3
»	C800h	open	open	closed
	D000h	closed	open	closed
	D800h	open	closed	closed
	F400h	closed	closed	closed
	Disabled	open	open	open

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	BIOS size set for 8K	W1	pins 1 & 2 closed
	BIOS size set for 16K	W1	pins 2 & 3 closed
»	DACK3	W3	pins 2 & 3 closed
	DACK1	W3	pins 1 & 2 closed
»	DREQ3	W4	pins 1 & 2 closed
	DREQ1	W4	pins 2 & 3 closed
»	Hard drive Interrupt is IRQ5	W5	pins 2 & 3 closed
	Hard drive Interrupt is IRQ2	W5	pins 1 & 2 closed
»	I/O Port address is 320h-323h	W7	closed
	I/O Port address is 324h-327h	W7	open

DRIVE TYPES FOR THE "BXD06" BIOS			DRIVE TYPE FOR THE "BXD07" BIOS
	Form Cap./Hds./Cyls./WPC	Form Cap./Hds./Cyls./WPC
0	35MB / 8 / 512 / none	20MB / 4 / 612 / none
1	10MB / 2 / 615 / none	32MB / 5 / 733 / none
2	20MB / 4 / 612 / 128	20MB / 4 / 612 / 128
3	10MB / 4 / 306 / none	10MB / 4 / 306 / none
4	5MB / 2 / 306 / none	43MB / 5 / 987 / none
5	26MB / 8 / 375 / none	60MB / 7 / 987 / none
6	20MB / 8 / 306 / none	20MB / 8 / 306 / none
7	Reserved for non-standard	Reserved for non-standard
8	15MB / 6 / 306 / none	42MB / 5 / 977 / none
9	27MB / 6 / 512 / none	42MB / 6 / 820 / none
A	10MB / 2 / 612 / none	10MB / 2 / 612 / none
B	22MB / 4 / 640 / none	62MB / 7 / 1024 / none
C	18MB / 3 / 697 / none	71MB / 8 / 1024 / none
D	30MB / 5 / 697 / none	80MB / 9 / 1024 / none
E	33MB / 6 / 640 / none	33MB / 6 / 640 / none
F	Special Setting	Special Setting
Note: Drive types "9" through "F" are only available with the 16K BIOS.
