DTC2183E (400545-89-OA) Hard Disk/Floppy Controller Settings and Configuration
DATA TECHNOLOGY CORPORATION
DTC2183E (400545-89-OA)
Card Type | Hard drive controller card |
Hard Drives supported | Two IDE (AT) drives |
Data Bus | 16-bit ISA |
Card Size | Half-length, half-height card |

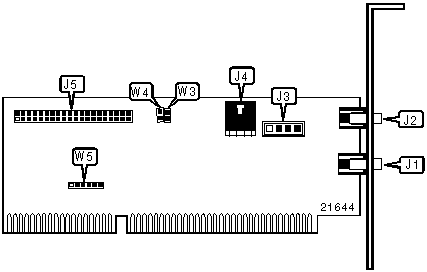

CONNECTIONS | |||
Function | Location | Function | Location |
Audio line out right channel | J1 | Audio in CD-ROM | J4 |
Audio line out left channel | J2 | 40-pin primary IDE(AT) connector | J5 |
Audio in CD-ROM | J3 | ||
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
| » | IORDY signal not passed to ISA BUS | W3 | Open |
| IORDY signal passed to ISA BUS | W3 | Closed | |
| » | IDE primary address is 1F0h-177h | W4 | Closed |
| IDE secondary address is 170h-1F7h | W4 | Open | |
| » | Factory configured - do not alter | W5/Pins 1 & 2 | Unidentified |
PORT INTERRUPT SELECTION | |||
IRQ | Label | Position | |
IRQ11 | W5 | Pins 5 & 6 closed | |
IRQ12 | W5 | Pins 4 & 5 closed | |
| » | IRQ15 | W5 | Pins 2 & 3 closed |
