DTC2183E (400545-89A) Hard Disk/Floppy Controller Settings and Configuration
DATA TECHNOLOGY CORPORATION
DTC2183E (400545-89A)
I/O Options | IDE interface, CD audio in, stereo audio line out, CD audio out |
Data Bus | 16-bit ISA |
Card Size | One-third height, half length |
Hard Drives Supported | Two IDE-AT devices |
Floppy Drives Supported | None |

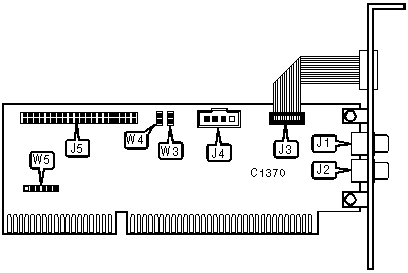

CONNECTIONS | |||
Function | Label | Function | Label |
Left audio line out | J1 | 4-pin CD audio in | J4 |
Right audio line out | J2 | 40-pin IDE(AT) connector | J5 |
4-pin CD audio out | J3 | ||
USER CONFIGURABLE SETTINGS | |||
Setting | Label | Position | |
| » | IORDY signal not sent to ISA bus | W3 | Open |
IORDY signal sent to ISA bus | W3 | Closed | |
| » | IDE(AT) address is 170h | W4 | Closed |
IDE(AT) address is 1F0h | W4 | Open | |
INTERRUPT SELECTION | ||
Setting | W5 | |
IRQ11 | Pins 5 & 6 closed | |
IRQ12 | Pins 4 & 5 closed | |
| » | IRQ15 | Pins 2 & 3 closed |
