MPEG MASTER DRAMA/V BOARD video card Settings and Configuration

Card Type	MPEG card
Video Chip Set	Unidentified
Highest Resolution Supported	1024 x 768
Maximum Video Memory	None
Data Bus	16-bit ISA
Video Types Supported	XVGA

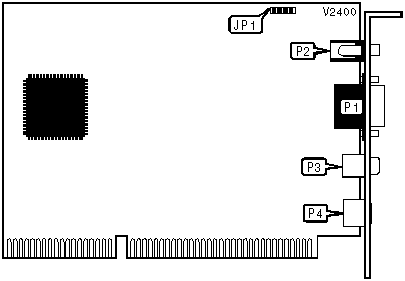

CONNECTIONS
Function	Label	Function	Label
Audio out (Sound card)	JP1	Composite video out (TV)	P3
15-pin video analog port	P1	Y/C video out (TV)	P4
Audio out (Amplifier)	P2
