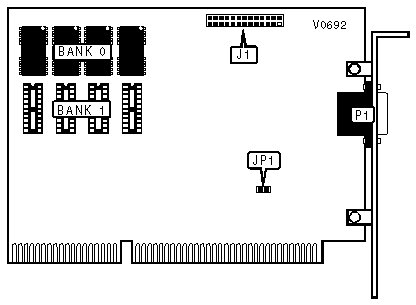

CHEETAH video card Settings and Configuration

UNIDENTIFIED

CHEETAH

Category
Video
Video Types Supported
XVGA
Video Processor
Cirrus Logic, Inc.
Highest Resolution Supported
1280 x 1024
Data Bus Type
16-bit ISA
Memory Type
DRAM
Maximum Onboard Memory
1MB

CONNECTIONS
Purpose
Location
Purpose
Location
15-pin analog video port
P1
VESA Feature connector
J1

ZERO WAIT STATE
Setting
JP1
» Enabled
Closed
Disabled
Open

DRAM CONFIGURATION
Size
Bank 0
Bank 1
» 512KB
(4) 256K x 4
None
1MB
(4) 256K x 4
(4) 256K x 4
