WIND/X video card Settings and Configuration

STB SYSTEMS, INC.

WIND/X

Card Type	Video
Video Processor	Unidentified
Maximum Onboard Memory	1MB VRAM
Video Types Supported	XVGA
Data Bus	16-bit ISA
Highest Resolution Supported	1024 x 768

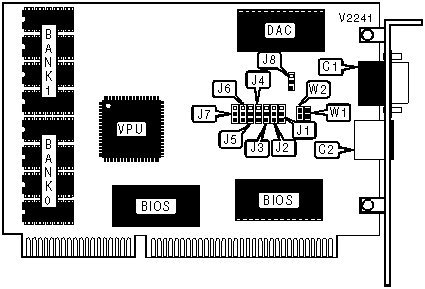

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter	J1	Unidentified
»	Video does not use IRQ2/9	J2	Pins 1 & 2 closed
	Video uses IR/FONT	J2	Pins 2 & 3 closed
»	BIOS uses 8-bit I/O	J3	Pins 2 & 3 closed
	BIOS uses 16-bit I/O	J3	Pins 1 & 2 closed
»	Bus mouse enabled	J8	Pins 2 & 3 closed
	Bus mouse disabled	J8	Pins 1 & 2 closed

SCAN RATE
Resolution		Vertical Scan	Horizontal Scan	J5	J6	J7
»	640 x 480	60Hz	31.5KHz	Pins 1 & 2	Pins 2 & 3	Pins 2 & 3
»	800 x 600	60Hz	37.5KHz	Pins 1 & 2	Pins 2 & 3	Pins 2 & 3
»	1024 x 768	60Hz	48KHz	Pins 1 & 2	Pins 2 & 3	Pins 2 & 3
	640 x 480	60Hz	31.5KHz	Pins 1 & 2	Pins 1 & 2	Pins 2 & 3
	800 x 600	60Hz	37.5KHz	Pins 1 & 2	Pins 1 & 2	Pins 2 & 3
	1024 x 768	43Hz (interlaced)	35.5KHz	Pins 1 & 2	Pins 1 & 2	Pins 2 & 3
	640 x 480	60Hz	37.5KHz	Pins 2 & 3	Pins 2 & 3	Pins 2 & 3
	800 x 600	60Hz	37.5KHz	Pins 2 & 3	Pins 2 & 3	Pins 2 & 3
	1024 x 768	72Hz	48KHz	Pins 2 & 3	Pins 2 & 3	Pins 2 & 3
	640 x 480	72Hz	37.5KHz	Pins 2 & 3	Pins 1 & 2	Pins 1 & 2
	800 x 600	72Hz	48KHz	Pins 2 & 3	Pins 1 & 2	Pins 1 & 2
	1024 x 768	70Hz	56.4KHz	Pins 2 & 3	Pins 1 & 2	Pins 1 & 2
	640 x 480	60Hz	31.5KHz	Pins 1 & 2	Pins 2 & 3	Pins 1 & 2
	800 x 600	56Hz	35KHz	Pins 1 & 2	Pins 2 & 3	Pins 1 & 2
	1024 x 768	60Hz	48KHz	Pins 1 & 2	Pins 2 & 3	Pins 1 & 2
	640 x 480	60Hz	31.5KHz	Pins 1 & 2	Pins 1 & 2	Pins 1 & 2
	800 x 600	53Hz	35KHz	Pins 1 & 2	Pins 1 & 2	Pins 1 & 2
	1024 x 768	43Hz (interlaced)	35.5KHz	Pins 1 & 2	Pins 1 & 2	Pins 1 & 2
	640 x 480	72Hz	37.5KHz	Pins 2 & 3	Pins 2 & 3	Pins 1 & 2
	800 x 600	72Hz	48KHz	Pins 2 & 3	Pins 2 & 3	Pins 1 & 2
	1024 x 768	60Hz	48KHz	Pins 2 & 3	Pins 2 & 3	Pins 1 & 2
Note: Pins designated are in the closed position.
