SPRINT video card Settings and Configuration
STB SYSTEMS, INC.
SPRINT
Category | Video |
Video Types Supported | XVGA |
Video Processor | Unidentified |
Highest Resolution Supported | 1280 x1024 |
Data Bus Type | 32-bit VESA Local Bus |
Memory Type | DRAM |
Maximum Onboard Memory | 1MB |

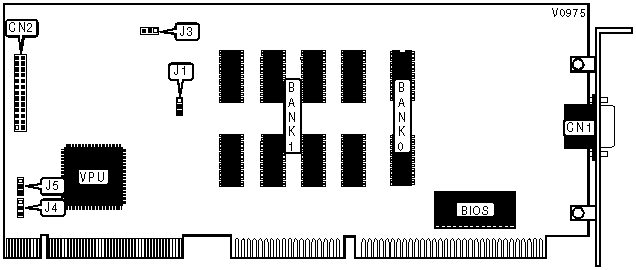

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
15-pin analog video port | CN1 | VGA feature connector | CN2 |
VERTICAL REFRESH RATE SELECTION | ||
Mode | J3 | |
» | Standard | Pins 2 & 3 closed |
| ERGO | Pins 1 & 2 closed |
BUS SPEED SELECTION | |||
Speed | J1 | J5 | |
» | 33MHz | Pins 1 & 2 closed | Pins 2 & 3 closed |
| 50MHz | Pins 2 & 3 closed | Pins 1 & 2 closed |
INTERRUPT SELECTION | ||
IRQ 2 | J4 | |
» | Disabled | Pins 2 & 3 closed |
| Enabled | Pins 1 & 2 closed |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
1MB | (2) 256K x 16 | NONE |
1MB | NONE | (8) 256K x 4 |
Note: Banks may not be populated simultaneously. | ||
