POWERGRAPH 64 VIDEO VL video card Settings and Configuration






STB SYSTEMS, INC.

POWERGRAPH 64 VIDEO VL

Card Type

Video card

Video Chip Set

S3 Trio64V+

Highest Resolution Supported

1280 x 1024

Maximum Video Memory

2MB DRAM

Data Bus

32-bit VESA Local Bus

Video Types Supported

XVGA

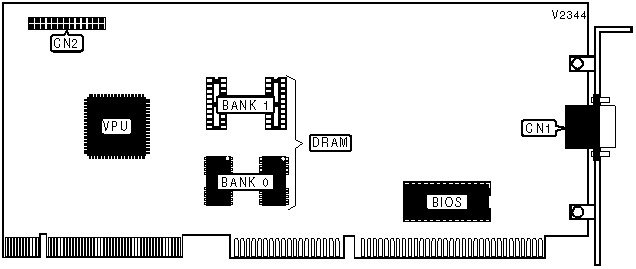

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port

CN1

VESA feature connector

CN2

DRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(2)256KB x 16 or (2) 512KB x 8

None

2MB

(2)256KB x 16 or (2) 512KB x 8

(2)256KB x 16
