WHIRLWIN/LITE video card Settings and Configuration
PIXELWORKS, INC.
WHIRLWIN/LITE
Category | Video |
Video Types Supported | XVGA |
Video Processor | S3 86C924 |
Highest Resolution Supported | 1024 x 768 |
Data Bus Type | 16-bit ISA |
Memory Type | VRAM |
Maximum Onboard Memory | 1024KB |

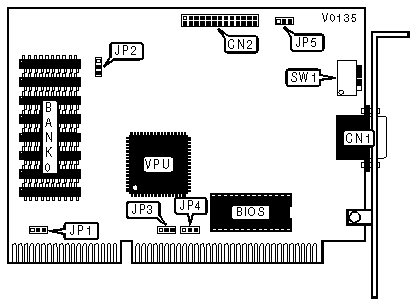

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
15-pin video analog port | CN1 | VGA feature connector | CN2 |
MONITOR TYPE CONFIGURATION | ||||
Type | Rate | SW1/1 | SW1/2 | |
| » | Multisync 48KHz | 60Hz | On | Off |
Multisync 38KHz | 43.5Hz | Off | On | |
Multisync 57KHz | 72Hz | On | On | |
VGA, Super VGA | 43.5Hz | Off | Off | |
TURBO MODE CONFIGURATION | ||
Setting | SW1/3 | |
| » | Disabled | Off |
| Enabled | On | |
BIOS TYPE SELECTION | ||
Type | SW1/4 | |
| » | 8-bit | On |
16-bit | Off | |
ZERO WAIT STATE SELECTION | ||
Setting | JP3 | |
| » | Disabled | Pins 2 & 3 closed |
Enabled | Pins 1 & 2 closed | |
VIDEO INTERRUPT CONFIGURATION | ||
IRQ 2/9 | JP4 | |
| » | Disabled | Pins 2 & 3 closed |
Enabled | Pins 1 & 2 closed | |
MONITOR ID CONFIGURATION | ||
Mode | JP5 | |
| » | Sense | Pins 2 & 3 closed |
MID1 | Pins 1 & 2 closed | |
Note: In the "Sense" mode the WhirlWin/Lite will automatically detect the monitor being used. In the "MID1 mode, the ID information from the monitor will be read by software which supports this feature. | ||
FACTORY CONFIGURED - DO NOT ALTER | |
Jumper | Position |
JP1 | Pins 2 & 3 closed |
JP2 | Pins 1 & 2 closed |
