VIDEO DISPLAY ADAPTER video card Settings and Configuration

Card Type	Video card
Video Chip Set	Unidentified
Maximum Video Memory	512KB
Video Types Supported	Monochrome, CGA, EGA, VGA
Highest Resolution Supported	1024 x 768
Data Bus	8-bit ISA

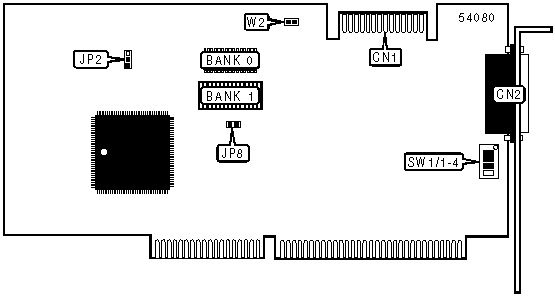

CONNECTIONS
Function	Label	Function	Label
Feature connector	CN1	15-pin analog video port	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	SW1/3	Off
»	Clock input from feature connector disabled	JP2	Pins 2 & 3 closed
	Clock input from feature connector enabled	JP2	Pins 1 & 2 closed
Note: When feature connector signal support is enabled, support of 800 x 600 graphics is disabled.

VIDEO MEMORY CONFIGURATION
Size	Bank 0	Bank 1
256KB	(1) 256KB	None
512KB	(1) 256KB	(1) 256KB
Note: Exact size and location of memory banks is unidentified.

MONITOR DISPLAY TIMING SELECTION
Setting	SW1/1
Multi-frequency display timing	On
Standard PS/2 fixed frequency timing	Off

MONITOR CONFIGURATION SELECTION
Setting	SW1/2
(PS/2) All VGA modes available on any monitor	On
(PC/AT) Color or monochrome mode depending on monitor type	Off

DATA PATH CONFIGURATION
Video memory	Bios Autodetect	W2	SW1/4
16-bit	Enabled	On	On
16-bit	Disabled	Off	On
8-bit	N/A	N/A	Off
Note: The Infiniti Video Memory Display Adapter is configurable to work with 8 or 16-bit Video Memory Data Paths. If an 8-bit video memory is selected, an 8-bit BIOS is also selected. If a 16-bit data path is selected, the user can enable BIOS autodetect to automatically detect the proper BIOS setting. When the BIOS autodetect is disabled, an 8-bit BIOS is automatically selected.

IRQ INTERRUPT SELECTION
Setting		JP8
»	IRdisabled	Open
	IRenabled	Closed
