VIDEO WIZARD video card Settings and Configuration

COGENT ELECTRONICS INDUSTRIES

VIDEO WIZARD

Category
Video
Video Types Supported
XVGA
Video Processor
Unidentified
Highest Resolution Supported
1024 x 768
Data Bus Type
16-bit ISA
Memory Type
DRAM
Maximum Onboard Memory
768KB

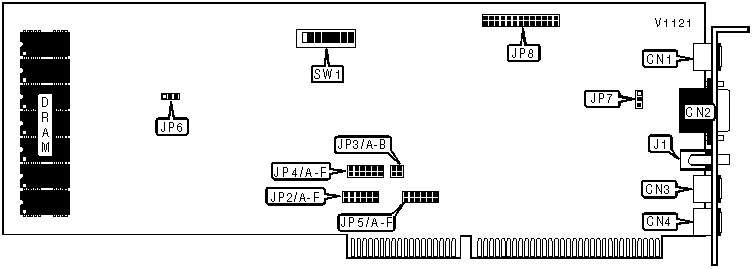

CONNECTIONS
Purpose
Location
Purpose
Location
VGA loopback
CN1
Audio/video 2/3 in
CN4
15-pin analog video port
CN2
Audio out
J1
Audio/video 1 in
CN3
VGA feature connector
JP8

COMPRESSION/DECOMPRESSION BASE ADDRESS
Address
JP3/A
JP3/B
»
390h
Open
Open

260h
Closed
Closed

280h
Open
Closed

320h
Closed
Open

PC VIDEO BASE I/O ADDRESS CONFIGURATION
Setting
JP6
»
Using I/O address 0AD6h
Pins 1 & 2 closed

Alternate address selection via switch S1
Pins 2 & 3 closed

BASE I/O ADDRESS SELECTION
Address
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
SW1/7
SW1/8
100h
On
On
On
On
On
On
On
Off
200h
On
On
On
On
On
On
Off
On
300h
On
On
On
On
On
On
Off
Off
400h
On
On
On
On
On
Off
On
On
500h
On
On
On
On
On
Off
On
Off
FB00h
Off
Off
Off
Off
Off
On
Off
Off
FC00h
Off
Off
Off
Off
Off
Off
On
On
FD00h
Off
Off
Off
Off
Off
Off
On
Off
FE00h
Off
Off
Off
Off
Off
Off
Off
On
FF00h
Off
Off
Off
Off
Off
Off
Off
Off
Note: A total of 255 base address settings are available. The switches are a binary representation of the decimal memory addresses. SW1/1 is the Most Significant Bit and switch SW1/8 is the Least Significant Bit. The switches have the following decimal values: SW1/1=32768, SW1/2=16384, SW1/3=8192, SW1/4=4096, SW1/5=2048, SW1/6=1024, SW1/7=512, SW1/8=256. Turn off the switches and add the values of the switches that are off to obtain the correct memory address. (Off=1, On=0)

VIDEO DMA CHANNEL SELECTION
Channel
JP2/A
JP2/B
JP2/C
JP2/D
JPE/E
JP2/F
5
Closed
Open
Open
Closed
Open
Open
6
Open
Closed
Open
Open
Closed
Open
7
Open
Open
Closed
Open
Open
Closed

AUDIO DMA CHANNEL SELECTION
Channel
JP4/A
JP4/B
JP4/C
JP4/D
JP4/E
JP4/F
1
Closed
Open
Open
Closed
Open
Open
2
Open
Closed
Open
Open
Closed
Open
3
Open
Open
Closed
Open
Open
Closed

FRAME INTERRUPT SELECTION
IRQ
JP5/A
JP5/B
JP5/C
JP5/D
JP5/E
JP5/F
10
Closed
Open
Open
Open
Open
Open
11
Open
Closed
Open
Open
Open
Open
12
Open
Open
Closed
Open
Open
Open

FACTORY CONFIGURED - DO NOT ALTER
Jumper
Position
JP7
Pins 2 & 3 closed
