AGP-V1326 video card Settings and Configuration

Card Type	DVD Video accelerator card
Video Chip Set	SIS
Maximum Video Memory	4MB SGRAM
Video Types Supported	VGA
Highest Resolution Supported	Unidentified
Data Bus	AGP

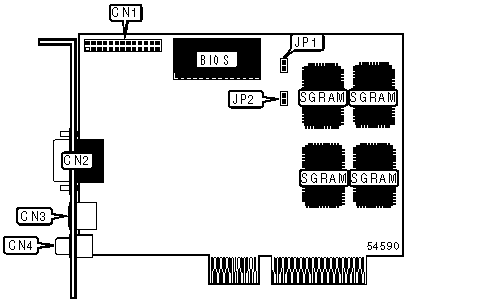

CONNECTIONS
Function	Label	Function	Label
Video feature connector	CN1	SVHS/TV output port	CN3
Video port	CN2	Composite/TV (RCA) output port	CN4

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	PAL standard	JP1	Closed
	NTSC standard	JP1	Open
»	INTA enabled	JP2	Closed
	INTA disabled	JP2	Open
