3DP-V264GT/PRO video card Settings and Configuration

Card Type	Video card
Video Chip Set	ATI
Maximum Video Memory	8MB SGRAM
Video Types Supported	VGA
Highest Resolution Supported	1600 x 1200
Data Bus	32-bit PCI

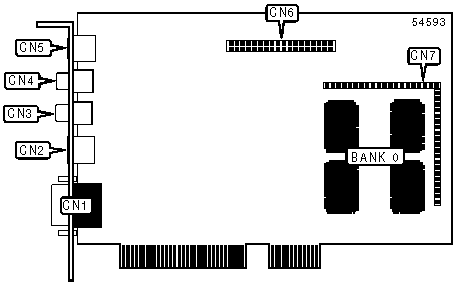

CONNECTIONS
Function	Label	Function	Label
Video port	CN1	S-video in	CN5
S-video out	CN2	AMC connector	CN6
Composite (RCA) out	CN3	Memory upgrade connector	CN7
Composite (RCA) in	CN4

SGRAM CONFIGURATION
Size	Bank 0	CN7
4MB	(4) 128K x 32 x 2	None
8MB	(4) 128K x 32 x 2	(4) 128K x 32 x 2 (on upgrade card)

CONNECTIONS
Function	Label
4MB memory upgrade connector	CN1
