AGP-V3400TNT/TV/16MB video card Settings and Configuration

Card Type	Video card
Video Chip Set	NVIDIA RIVA TNT
Maximum Video Memory	16MB
Video Types Supported	Unidentified
Highest Resolution Supported	Unidentified
Data Bus	AGP

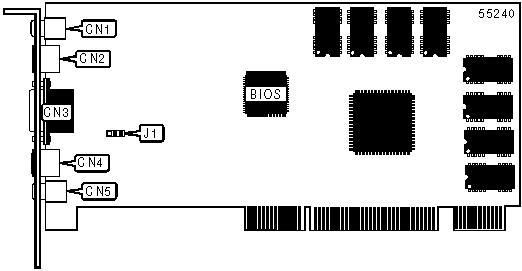

CONNECTIONS
Function	Label	Function	Label
Composite (RCA) in	CN1	S - video out	CN4
S - video in	CN2	Composite (RCA) out	CN5
Video out	CN3

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	NTSC	J1	Pins 2 & 3 closed
	PAL	J1	Pins 1 & 2 closed
