NETVISION 2200I, NETVISION 2500I video card Settings and Configuration
ARTIST GRAPHICS
NETVISION 2200I, NETVISION 2500I
Card Type | Video card |
Video Chipset | Artist Graphics ARTIST 3GA |
Maximum Video Memory | 4MB VRAM |
Data Bus | 32-bit PCI |
Video Types Supported | XVGA |
Highest Resolution Supported | 1600 x 1280 (NetVision 2200i) 1856 x 1484 or 2048 x 1152 (NetVision 2500i) |

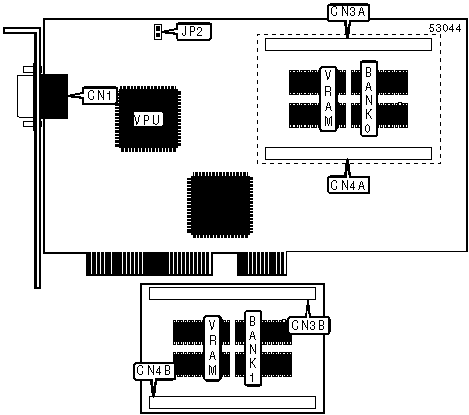

CONNECTIONS | |||
Function | Label | Function | Label |
15-pin analog video out | CN1 | Header to memory daughterboard | CN4A |
Header to memory daughterboard | CN3A | Header to main board CN4A (on back of board) | CN4B |
Header to main board CN3A (on back of board) | CN3B | ||
USER CONFIGURABLE SETTINGS | |||
Setting | Label | Position | |
| » | VGA BIOS enabled | JP2 | Open |
VGA BIOS disabled | JP2 | Closed | |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
2MB | Installed | Not installed |
4MB | Installed | Installed |
