TRI-COMBO I/O ADAPTER video card Settings and Configuration
ADVANCED LOGIC RESEARCH, INC.
TRI-COMBO I/O ADAPTER
Category | Video/Cache/Network |
Video Type | XVGA |
Video Processor | ATI Technologies, Inc. |
Highest Resolution Supported | 1280 x 1024 |
Data Bus Type | Proprietary |
Memory Type | VRAM |
Maximum Onboard Memory | 2MB |

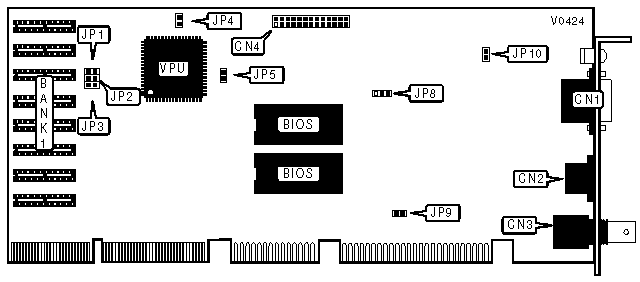

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
15-pin analog video port | CN1 | RG58A/U 50ohm coaxial | CN3 |
Unshielded twisted pair | CN2 | VESA Feature connector | CN4 |
FACTORY CONFIGURED SETTINGS | |
Jumper | Setting |
JP1 | N/A |
JP2 | N/A |
JP3 | N/A |
JP10 | N/A |
VIDEO CONTROLLER MODE | |||
Setting | JP4 | JP5 | |
| » | Enabled | Open | Open |
Disabled | Closed | Closed | |
ETHERNET CONNECTOR SELECTION | ||
Setting | JP8 | |
| » | 10 Base2 connector enabled | pins 1 & 2 closed |
10 Base2 connector disabled | pins 1 & 2 open | |
10 Base T connector enabled | pins 2 & 3 closed | |
10 Base T connector disabled | pins 2 & 3 open | |
BOOT ROM SELECTION | ||
Setting | JP9 | |
| » | Disabled | Open |
Enabled | Closed | |
VIDEO MEMORY CONFIGURATION | |||
Size | Bank 0 | Bank 1 | |
| » | 1MB | (8) 256 x 4 | NONE |
2MB | (8) 256 x 4 | (8) 256 x 4 | |
MISCELLANEOUS TECHNICAL NOTES |
Bank 0 located on reverse side of card |
