LASERWAVE MOVIE STUDIO video card Settings and Configuration
ACS COMPUTER GROUP
LASERWAVE MOVIE STUDIO
Category | Video |
Video Types Supported | XVGA |
Video Processor | Unidentified |
Highest Resolution Supported | 1024 x 768 |
Data Bus Type | 16-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 1.5MB |

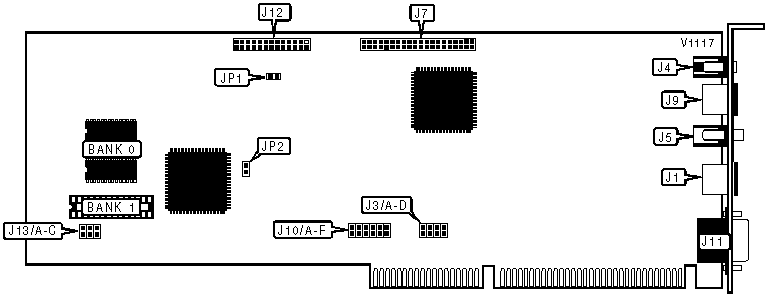

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
Analog pass through video in | J1 | S-video in | J9 |
MPEG audio line out | J4 | 15-pin analog video port | J11 |
Composite video input | J5 | VGA feature connector | J12 |
JPEG feature connector | J7 | ||
CLOCK BALANCE CONFIGURATION | ||
| Setting | JP1 | |
| » | On | Closed |
| Off | Open | |
ZERO WAIT - STATE CONFIGURATION | ||
| Setting | JP2 | |
| » | Zero wait-state | Closed |
| Non-Zero wait-state | Open | |
BASE I/O ADDRESS SELECTION | ||||
| Address | J13/A | J13/B | J13/C | |
| » | 550h | Closed | Open | Closed |
| 450h | Closed | Closed | Closed | |
| 4D0h | Open | Closed | Closed | |
| 5D0h | Open | Open | Closed | |
| 650h | Closed | Closed | Open | |
| 6D0h | Open | Closed | Open | |
| 750h | Closed | Open | Open | |
| 7D0h | Open | Open | Open | |
DMA CHANNEL SELECTION | |||||||
| DMA | J10/A | J10/B | J10/C | J10/D | J10/E | J10/F | |
| » | 6 | Open | Open | Closed | Closed | Open | Open |
| 5 | Open | Open | Open | Open | Closed | Closed | |
| 7 | Closed | Closed | Open | Open | Open | Open | |
INTERRUPT SELECTION | |||||
| IRQ | J3/A | J3/B | J3/C | J3/D | |
| » | 10 | Open | Open | Open | Closed |
| 11 | Open | Open | Closed | Open | |
| 12 | Open | Closed | Open | Open | |
| 15 | Closed | Open | Open | Open | |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
1MB | (2) 256K x 16 | NONE |
1.5MB | (2) 256K x 16 | (1) 256K x 16 |
