ACCELR8 video card Settings and Configuration

Card Type	Video Accelerator
Video Chip Set	Unidentified
Maximum Video Memory	2MB VRAM Framebuffer, 2MB DRAM Localbuffer
Video Types Supported	VGA
Highest Resolution Supported	1280 X 1024
Data Bus	32-bit PCI

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Header connector to memory upgrade module	CN3
Header connector to memory upgrade module	CN2	15-pin analog video port	CN4

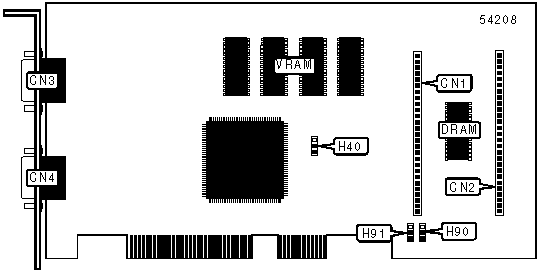

DRAM JUMPER CONFIGURATION
Size	H40	H90	H91
2MB DRAM	Open	Pins 1 & 2	Pins 2 & 3
6MB DRAM (4MB memory module installed)	Open	Pins 2 & 3	Pins 2 & 3
Note: Pins designated are in the closed position.

Card Type	Memory upgrade module
Maximum Video Memory	4MB DRAM Localbuffer

CONNECTIONS
Function	Label	Function	Label
Header connector to main board	CN5	Header connector to main board	CN6
