MOTOROLA, INC.
MPMC101 SINGLE-ENDED PCI
|
Card Type |
Digital I/O card |
|
Chip Set |
NCR |
|
Maximum Onboard Memory |
128MB |
|
I/O Options |
SCSI-2 connector (2) |
|
Hard Drives supported |
Up to 30 SCSI-2 Fast/Wide devices |
|
Data Bus |
32-bit PCI |
|
Card Size |
Half-length, full-height |
|

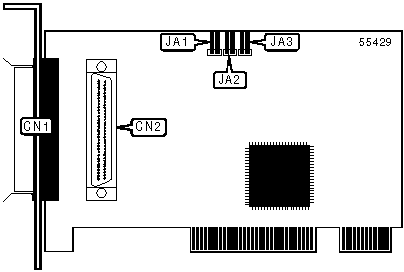

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
SCSI-2 port |
CN1 |
SCSI-2 port |
CN2 |
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
Card supplies terminator power to SCSI bus |
JA1 |
Closed |
|
Card does not supply terminator power to SCSI bus |
JA1 |
Open |
|
BUS TERMINATOR SELECTION | ||
|
Setting |
JA2 |
JA3 |
|
Bus terminator enabled |
Closed |
Closed |
|
Bus terminator disabled |
Open |
Open |
|
|
|
|
 |
|
