MPMC101 IO card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
MOTOROLA, INC.
MPMC101
|
Card Type |
Digital I/O card |
|
I/O Options |
SCSI-2 connector |
|
Hard Drives supported |
Up to 15 SCSI-2 Fast/Wide devices |
|
Data Bus |
PCI Mezzanine |
|

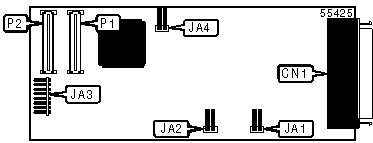

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
SCSI-2 connector |
CN1 |
PCI mezzanine card connector |
P2 |
|
PCI mezzanine card connector |
P1 |
|
|
|
USER CONFIGURABLE SETTINGS |
||
|
Function |
Label |
Position |
|
?? Card supplies terminal power to SCSI bus |
JA1 |
Closed |
|
Card does not supply terminal power to SCSI bus |
JA1 |
Open |
|
? Card is first or last device on SCSI bus |
JA2 |
Closed |
|
Card is not first or last device on SCSI bus |
JA2 |
Open |
|
? Factory configured - do not alter |
JA3 |
Open |
|
? Little endian mode enabled |
JA4 |
Open |
|
Big endian mode enabled |
JA4 |
Closed |
|
MISCELLANEOUS TECHNICAL NOTES |
|
MPMC101 supports single-ended SCSI-2 connections |
|
|
|
|
 |
|
