TURTLE BEACH SYSTEMS
DAYTONA PCI
|
Card Type |
Sound card |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
Unidentified |
|
I/O Options |
CD-ROM interface, game/MIDI port, line in, auxiliary line in, Audio in – CD-ROM, line out, modem in |
|
Data Bus |
32-bit PCI |
|
Card Size |
Half-length, full-height card |
|

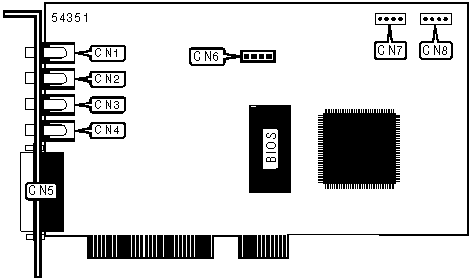

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Auxiliary line in |
CN1 |
Game/MIDI port |
CN5 |
|
Microphone in |
CN2 |
Audio in - CD-ROM (IDE) |
CN6 |
|
Line in |
CN3 |
Audio in - Auxiliary |
CN7 |
|
Line out |
CN4 |
Modem in |
CN8 |
|
|
|
|
 |
|
