SOUNDWAVE PRO PCI Sound card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Sound/Multimedia / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
SOUNDWAVE PRO PCI Sound card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
SIIG, INC.
SOUNDWAVE PRO PCI
|
Card Type |
Sound card |
|
Chip Set Maximum Onboard Memory |
Unidentified Unidentified |
|
I/O Options |
CD-ROM interface, game/MIDI port, speaker/line out, line in/rear speaker out, audio in- CD-ROM (2), Modem/TAD in/out, TV tuner |
|
Data Bus |
32-bit PCI |
|

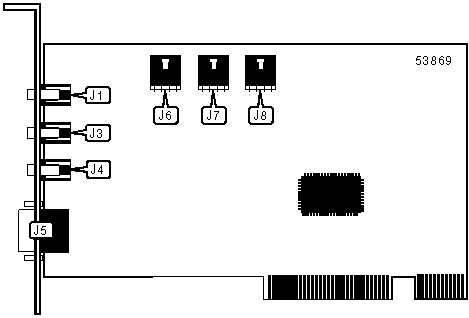

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Speaker/line-out |
J1 |
Audio in-CD-ROM |
J6 |
|
Line in/rear speaker out |
J3 |
TV Tuner/Audio-in - CD-ROM (IDE/Sony) |
J7 |
|
Microphone in |
J4 |
Modem/TAD in/out |
J8 |
|
Game/MIDI port |
J5 | ||
|
|
|
|
 |
|
