REVEAL COMPUTER PRODUCTS
SC100
|
Card Type |
Sound card |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
None |
|
I/O Options |
Line in, microphone in, speaker out, game/MIDI port, audio in - CD-ROM, |
|
Data Bus |
8-bit ISA |
|

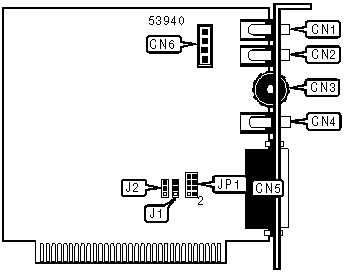

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Line in |
CN1 |
Speaker out |
CN4 |
|
Microphone in |
CN2 |
Game/MIDI port |
CN5 |
|
Volume control |
CN3 |
Audio in - CD-ROM |
CN6 |
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
Base I/O address select 220 |
J1 |
Pins 1 & 2 closed |
|
Base I/O address select 230 |
J1 |
Pins 2 & 3 closed |
|
MIDI/game port enabled |
J2 |
Pins 1 & 2 closed |
|
MIDI/game port disabled |
J2 |
Pins 2 & 3 closed |
|
IDE INTERRUPT SELECTION | ||||
|
IRQ |
JP1/pins 1 & 2 |
JP1/pins 3 & 4 |
JP1/pins 5 & 6 |
JP1/pins 7 & 8 |
|
IRQ2 |
Closed |
Open |
Open |
Open |
|
IRQ3 |
Open |
Closed |
Open |
Open |
|
IRQ5 |
Open |
Open |
Closed |
Open |
|
IRQ7 |
Open |
Open |
Open |
Closed |
|
|
|
|
 |
|
