SF64-PCF Sound card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
MEDIAFORTE PRODUCTS PTE, LTD.
SF64-PCF
|
Card Type |
Sound card |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
Unidentified |
|
I/O Options |
Line in, microphone in, audio in - CD-ROM, TAD, line out (2), PC speaker connector, game/MIDI port |
|
Data Bus |
32-bit PCI |
|
Card Size |
Half length, full height card |
|

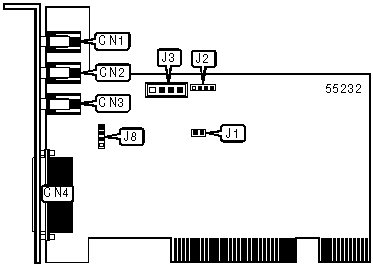

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Line in |
CN1 |
PC speaker |
J1 |
|
Microphone in |
CN2 |
TAD |
J2 |
|
Line out - external |
CN3 |
Audio in - CD-ROM |
J3 |
|
Game/MIDI port |
CN4 |
Line out - internal |
J8 |
|
|
|
|
 |
|
