SF64-PCE2 Sound card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Sound/Multimedia / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
SF64-PCE2 Sound card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
MEDIAFORTE PRODUCTS PTE, LTD.
SF64-PCE2
|
Card Type |
Sound card |
|
Chip Set |
ESS |
|
Maximum Onboard Memory |
Unidentified |
|
I/O Options |
Game/MIDI port, microphone in (2), line in, speaker/line out (2), audio in - CD-ROM, TAD connector, PC speaker connector, auxilary in, master volume control in |
|
Data Bus |
32-bit PCI |
|
Card Size |
Half-length, full height |
|

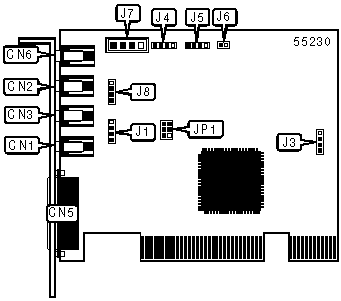

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Speaker/line out - external |
CN1 |
Master Volume Control in |
J3 |
|
Line in |
CN2 |
Auxiliary in |
J4 |
|
Microphone in - external |
CN3 |
TAD connector |
J5 |
|
Game/MIDI port |
CN5 |
PC speaker connector |
J6 |
|
Antenna |
CN6 |
Audio in - CD-ROM |
J7 |
|
Speaker/line out - internal |
J1 |
Microphone in - internal |
J8 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Output via amplifier |
JP1 |
Pins 1 & 3, 2 & 4 closed |
|
Output via Line-Out |
JP1 |
Pins 3 & 5, 4 & 6 closed | |
|
|
|
|
 |
|
