MARVEL II Sound card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Sound/Multimedia / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
MARVEL II Sound card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
MATROX GRAPHICS, INC.
MARVEL II
|
Card Type |
Sound/Video |
|
Chipset Controller |
N/A |
|
I/O Options |
Aux in, speaker/line out, video in, video out |
|
Maximum DRAM |
N/A |
|

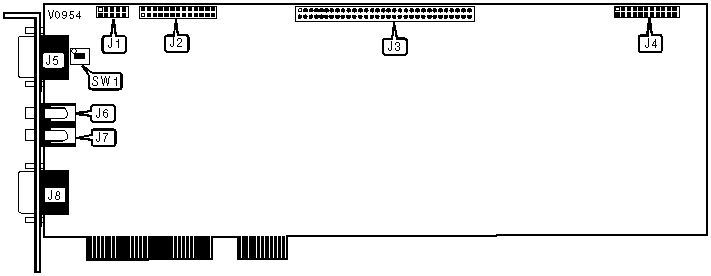

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Module connector |
J1 |
Video in |
J5 |
|
VGA feature connector |
J2 |
Aux in |
J6 |
|
Module connector |
J3 |
Speaker/line out |
J7 |
|
EBI connector |
J4 |
Video out |
J8 |
|
STEREO AUDIO OUTPUT SELECTION | |
|
Setting |
SW1 |
|
High impedance (600ohms minimum) |
Rightmost position |
|
Low impedance (8ohms minimum) |
Leftmost position |
|
|
|
|
 |
|
