LABSOUND MAESTRO Sound card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Sound/Multimedia / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
LABSOUND MAESTRO Sound card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
LABWAY CORPORATION
LABSOUND MAESTRO
|
Card Type |
Sound card |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
Unidentified |
|
I/O Options |
Speaker out (2), line out (2), line in (2), microphone in (2), game/MIDI port, audio in - CD-ROM (2), auxiliary connector, video connector, I2S Interface, multi-speaker connector, PC-PCI sideband signal, mono/phone connector |
|
Data Bus |
32-bit PCI |
|
Card Size |
Full-length, full-height card |
|

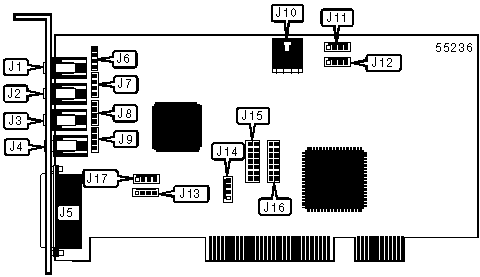

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Speaker out - external |
J1 |
Audio in - CD-ROM (ATAPI) |
J10 |
|
Line out - external |
J2 |
Audio in - CD-ROM (IDE) |
J11 |
|
Line in - external |
J3 |
Auxiliary connector |
J12 |
|
Microphone in - external |
J4 |
Video connector |
J13 |
|
Game/MIDI port |
J5 |
I2S Interface |
J14 |
|
Speaker out - internal |
J6 |
Multi-speaker connector |
J15 |
|
Line out - internal |
J7 |
PC-PCI Audio Sideband Signal |
J16 |
|
Line in - internal |
J8 |
Mono/phone connector |
J17 |
|
Microphone in - internal |
J9 | ||
|
|
|
|
 |
|
