ART-617, ART-617-3D Sound card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
KADATCO CO,. LTD.
ART-617, ART-617-3D
|
Card Type |
Sound Card |
|
Chip Set |
S3 |
|
Maximum Onboard Memory |
Unidentified |
|
I/O Options |
Game/MIDI Port, line in, audio in CD-ROM (2), aux in, microphone in, Speaker/line out |
|
Data Bus |
32-bit PCI |
|
Card Size |
Half-length, half-height |
|

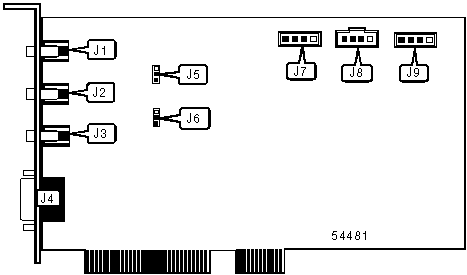

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Line in |
J1 |
Aux in |
J7 |
|
Microphone in |
J2 |
Audio in CD-ROM |
J8 |
|
Speaker/line-out |
J3 |
Audio in CD-ROM |
J9 |
|
Game/MIDI Port |
J4 | ||
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
J5 |
J6 |
|
Speaker out |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
Line out |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
|
|
|
 |
|
