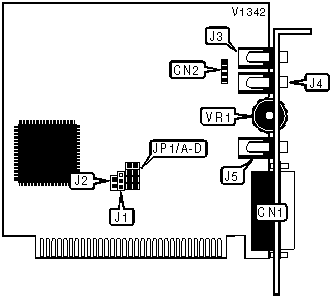

MULTIMEDIA SOUNDKARTE (ESPOWER 2.7) Sound card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ESCOM AG
MULTIMEDIA SOUNDKARTE (ESPOWER 2.7)
|
Card Type |
Sound card |
|
Chipset Controller |
Aztech AZTSB0792 |
|
I/O Options |
Audio out, CD-ROM audio, game/MIDI port, line in, microphone in, volume |
|
Maximum DRAM |
N/A |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Game/MIDI port |
CN1 |
Mic in |
J4 |
|
CD audio in |
CN2 |
Audio out |
J5 |
|
Line in |
J3 |
Volume |
VR1 |
|
BASE I/O ADDRESS SELECTION | ||
|
Address |
J1 | |
| » |
220h |
Pins 2 & 3 closed |
|
240h |
Pins 1 & 2 closed | |
|
GAME PORT CONFIGURATION | |
|
Setting |
J2 |
|
Enabled |
Open |
|
Disabled |
Closed |
|
INTERRUPT SELECTION | |||||
|
IRQ |
JP1/A |
JP1/B |
JP1/C |
JP1/D | |
| » |
7 |
Open |
Open |
Open |
Closed |
|
2 |
Closed |
Open |
Open |
Open | |
|
3 |
Open |
Closed |
Open |
Open | |
|
5 |
Open |
Open |
Closed |
open | |
|
|
|
|
 |
|
