MED6617 Sound card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Sound/Multimedia / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
MED6617 Sound card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
DATAEXPERT CORPORATION
MED6617
|
Card Type |
Sound card |
|
Chip Set |
S3 |
|
I/O Options |
Line in (2), line out (2), speaker out (2), microphone in (2), game/MIDI port, audio in - CD-ROM (2), auxiliary in (2) |
|
Data Bus |
32-bit PCI |
|
Card Size |
Half-length, full-height card |
|

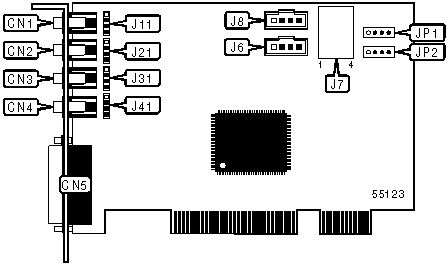

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Speaker out - external |
CN1 |
Audio in - CD-ROM |
J8 |
|
Line out - external |
CN2 |
Speaker out - internal |
J11 |
|
Line in - external |
CN3 |
Line out - internal |
J21 |
|
Microphone in - external |
CN4 |
Line in - internal |
J31 |
|
Game/MIDI port |
CN5 |
Microphone in - internal |
J41 |
|
Audio in - CD-ROM |
J6 |
Auxiliary-1 in |
JP1 |
|
Unidentified |
J7 |
Auxiliary-2 in |
JP2 |
|
|
|
|
 |
|
