ADVANCED GRAVIS COMPUTER TECHNOLOGY, LTD.

ULTRASOUND ACE V.1.0

Card Type	Sound wavetable card
Chipset Controller	ICS 1614
I/O Options	Line in, line out
Maximum DRAM	1MB

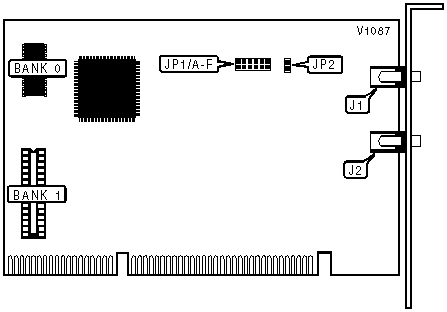

CONNECTIONS
Purpose	Location	Purpose	Location
Line out	J1	Line in	J2

BASE I/O ADDRESS SELECTION
Address		JP1/A	JP1/B	JP1/C	JP1/D	JP1/E	JP1/F
»	260h	Open	Open	Open	Open	Open	Closed
	210h	Closed	Open	Open	Open	Open	Open
	220h	Open	Closed	Open	Open	Open	Open
	230h	Open	Open	Closed	Open	Open	Open
	240h	Open	Open	Open	Closed	Open	Open
	250h	Open	Open	Open	Open	Closed	Open

ON-BOARD SOUND PROCESSOR CONFIGURATION
Setting		JP2
»	Disabled	Closed
	Enabled	Open
Note: The Ultrasound is designed for use with anohtersound card. If the Ultrasound is the only sound card in the system, enable the on-board processors.

DRAM CONFIGURATION
Size	Bank 0	Bank 1
512KB	(1) 512K x 8	NONE
1MB	(1) 512K x 8	(1) 512K x 8
