RADIO ROCK-IT RDS
|
Card Type |
Sound card |
|
Chipset Controller |
Intel |
|
I/O Options |
Antenna, audio out, data out, line in, stereo out |
|
Maximum DRAM |
N/A |
|

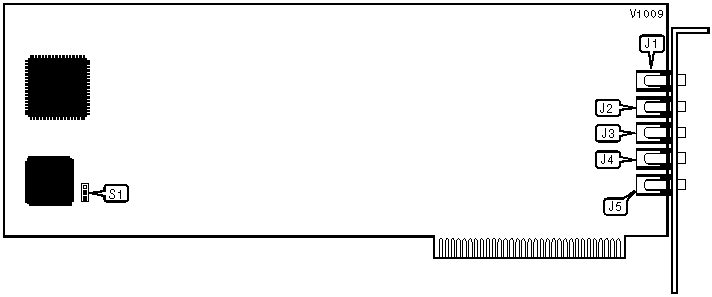

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Antenna |
J1 |
Line in |
J4 |
|
Stereo out |
J2 |
Data out |
J5 |
|
Audio out |
J3 | ||
|
PORT ADDRESS SELECTION | ||
|
Address |
S1 | |
| » |
300h - 330h |
Pins 1 & 2 closed |
|
700h - 730h |
Pins 2 & 3 closed | |
|
|
|
|
 |
|
