ACTION WELL DEVELOPMENT, LTD.
AA-1815B
|
Card Type |
Sound card |
|
Chip Set |
Analog Devices |
|
I/O Options |
Line in, audio in - CD-ROM (2), microphone in, game/MIDI port, speaker out |
|
Data Bus |
16-bit ISA |
|
Card Size |
Full-length, half-height card |
|
CONNECTIONS |
||||||
|
Function |
Label |
Function |
Label |
|||
|

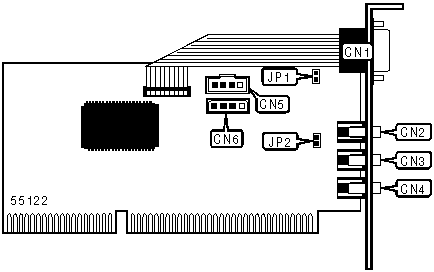

Game/MIDI port |
CN1 |
Microphone in |
CN4 |
|||
|
Speaker out |
CN2 |
Audio in - CD-ROM (Sony/Mitsumi) |
CN5 |
|||
|
Line in |
CN3 |
Audio in - CD-ROM (IDE) |
CN6 |
|||
|
AUDIO OUTPUT GAIN SETTINGS |
||
|
Function |
JP1 |
JP2 |
|
» High gain output |
Open |
Open |
|
Low gain output |
Closed |
Closed |
|
Note: The high gain output setting is used for either headphones or non-amplified speakers. The low gain output setting is used for amplified speakers only. |
||
|
|
|
|
 |
|
