ETHERMAC (MAC LC) Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / U / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
ETHERMAC (MAC LC) Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
UNIDENTIFIED
ETHERMAC (MAC LC)
|
NIC Type: |
Ethernet |
|
Transfer Rate: |
10Mbps |
|
Data Bus: |
32-bit LC processor direct slot (Apple) |
|
Topology: |
Linear Bus Star |
|
Wiring Type |
RG-58A/U 50ohm coaxial Shielded/Unshielded twisted pair |
|
Boot ROM |
Not Available |
|

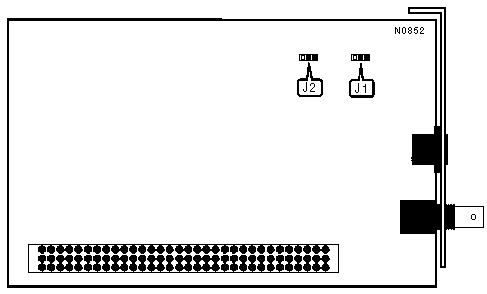

CABLE TYPE | |
|
Type |
J1 |
|
RG-58A/U 50ohm coaxial |
Pins 2 & 3 closed |
|
Shielded/Unshielded twisted pair |
Pins 1 & 2 closed |
|
10BASE-T LINK STATUS | |
|
Setting |
J2 |
|
10BASE-T hub selected |
Pins 2 & 3 closed |
|
Pre-10BASE-T hub selected |
Pins 1 & 2 closed |
|
Note:J2 only applies when twisted pair cable is being used. | |
|
|
|
|
 |
|
