TRENDWARE INTERNATIONAL, INC.
TE-PCI
|
NIC Type: |
Ethernet |
|
Transfer Rate: |
10Mbps |
|
Data Bus: |
32-bit PCI-local bus |
|
Topology: |
Linear bus Star |
|
Wiring Type |
RG-58A/U 50ohm coaxial Shielded/Unshielded twisted pair |
|
Boot ROM |
Not available |
|

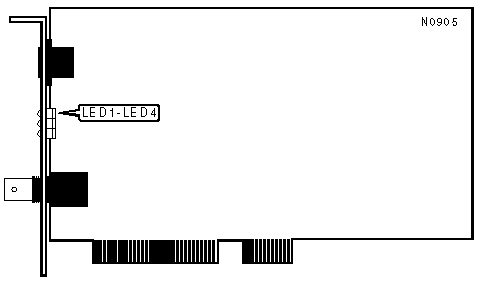

DIAGNOSTIC LEDS | ||
|
LED |
Status |
Condition |
|
LED1 |
Blinking |
Data is being transmitted or received |
|
LED2 |
Blinking |
Network connected successfully |
|
LED3 |
On |
Unshielded twisted pair cable in use |
|
LED3 |
Off |
RG-58A/U 50ohm coaxial cable in use |
|
|
|
|
 |
|
