EP325 Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / S / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
EP325 Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
SURECOM TECHNOLOGY CORPORATION
EP325
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Available |
|
Network Transfer Rate |
10Mbps |
|
Topology |
Linear Bus, Star |
|
Wiring Type |
RJ-45 Unshielded twisted pair, RG-58A/U 50ohm coaxial |
|
Data Bus |
32-bit PCI |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
RJ-45 UTP connector |
CN1 |
RG-58A/U 50ohm coaxial |
CN2 |
|

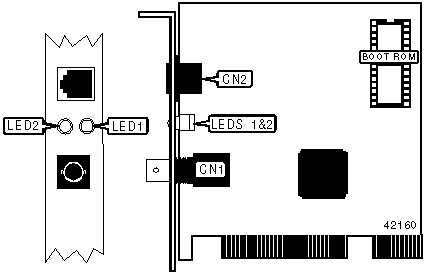

DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Network connection is good (10Base-T cabling only) |
|
LED1 |
Green |
Off |
Network connection is bad (10Base-T cabling only) |
|
LED2 |
Red |
On |
Power is on |
|
LED2 |
Red |
Blinking |
Data is being received and transmitted |
|
LED2 |
Red |
Off |
Power is off |
|
|
|
|
 |
|
