PDC9025P-2 Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
PUREDATA, LTD.
PDC9025P-2
|
Card Type |
Token Ring hub/repeater |
|
Network Transfer Rate |
4Mbps/16Mbps x 2 |
|
Topology |
Linear Bus/Star/Ring |
|
Wire Type |
Shielded twisted pair |
|

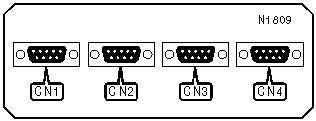

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Shielded twisted pair out |
CN1 |
Shielded twisted pair to workstation |
CN3 |
|
Shielded twisted pair to workstation |
CN2 |
Shielded twisted pair in |
CN4 |
|
MISCELLANEOUS TECHNICAL NOTES |
|
CN1 may also be used to connect to a workstation. If CN1 is not used, it must be terminated with a loopback connector. If neither CN2 or CN3 is connected, the device acts as a repeater. |
|
|
|
|
 |
|
