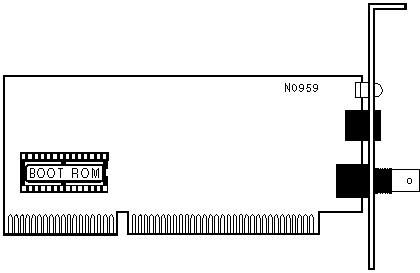

PROTEC MICROSYSTEMS, INC.
NIC-16E2
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus/Star |
|
Wiring Type |
Unshielded twisted pair RG-58A/U 50ohm coaxial |
|
Boot ROM |
Available |
|
DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
LED |
On |
RJ-45 port being used |
|
LED |
Off |
AUI or RG-58A/U port being used |
|
|
|
|
 |
|
