SMARTFAST (ENW-9500-F) Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
PLANET TECHNOLOGY CORPORATION
SMARTFAST (ENW-9500-F)
|
NIC Type |
Ethernet |
|
Network Transfer Rate |
10/100Mbps |
|
Data Bus |
32-bit PCI |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Not available |
|

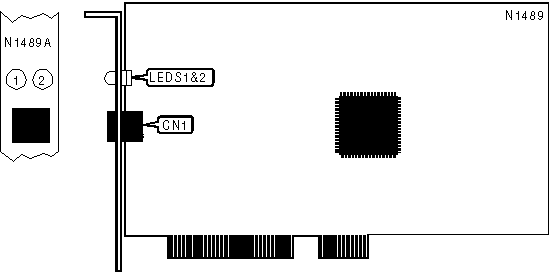

CONNECTIONS | |
|
Function |
Label |
|
Unshielded twisted pair port |
CN1 |
|
DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
LED1 |
On |
Network connection is good |
|
LED1 |
Off |
Network connection is broken |
|
LED2 |
Blinking |
Data is being received |
|
LED2 |
Off |
Data is not being received |
|
|
|
|
 |
|
