OC-6151 ATM PCI 155 Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
OLICOM, INC.
OC-6151 ATM PCI 155
|
NIC Type |
ATM |
|
Network Transfer Rate |
155.52Mbps |
|
Data Bus |
32-bit PCI |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Not available |
|

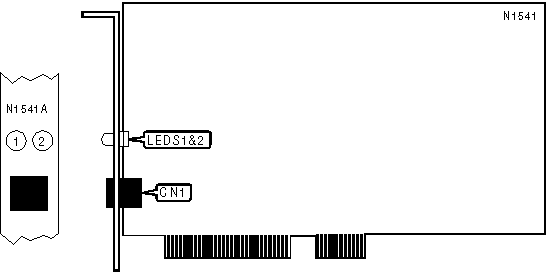

CONNECTIONS | |
|
Function |
Label |
|
Unshielded twisted pair port |
CN1 |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Clock is synchronized on the receive path |
|
LED1 |
Green |
Off |
Clock is not synchronized on the receive path |
|
LED2 |
Yellow |
On |
Loss of signal on the receive path |
|
LED2 |
Yellow |
Off |
Signal good on receive path |
|
TECHNICAL NOTE |
|
Note: The OC-6151 ATM PCI 155 will emulate Ethernet using Linear Bus topology. |
|
|
|
|
 |
|
