NE2000PLUS-C Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / N / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
NE2000PLUS-C Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
NATIONAL SEMICONDUCTOR CORPORATION
NE2000PLUS-C
|
NIC Type |
Ethernet |
|
Network Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus |
|
Wiring Type |
RG-58A/U 50ohm coaxial |
|
Boot ROM |
Available |
|

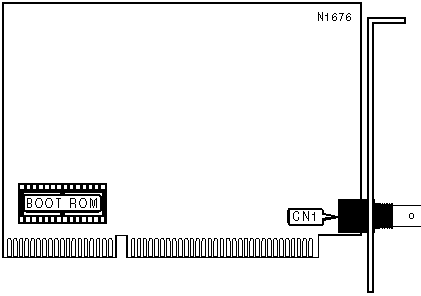

CONNECTIONS | |
|
Function |
Label |
|
RG-58A/U 50ohm coaxial port |
CN1 |
|
|
|
|
 |
|
