D-LINK
DT-650S, DT-650U
|
NIC Type |
Token Ring |
|
Network Transfer Rate |
4/16Mbps |
|
Data Bus |
PCMCIA Type II |
|
Topology |
Ring |
|
Wiring Type |
Shielded twisted pair (DT-650S) Unshielded twisted pair (DT-650U) |
|
Boot ROM |
Not available |
|

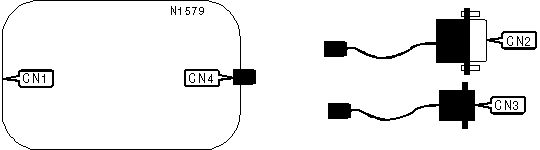

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
PCMCIA port |
CN1 |
Unshielded twisted pair port |
CN3 |
|
Shielded twisted pair port |
CN2 |
Media cable connector |
CN4 |
|
|
|
|
 |
|
