NETELLIGENT 10 T ISA UTP CONTROLLER Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
COMPAQ COMPUTER CORPORATION
NETELLIGENT 10 T ISA UTP CONTROLLER
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Available |
|
Network Transfer Rate |
10Mbps |
|
Topology |
Linear Bus |
|
Wiring Type |
Unshielded twisted pair (RJ-45) |
|
Data Bus |
16-bit ISA |
|
CONNECTIONS | |
|
Function |
Label |
|
UTP connector (RJ-45) |
CN1 |
|

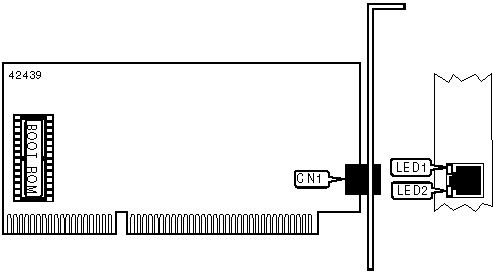

DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Unidentified |
On |
Network connection is good |
|
LED1 |
Unidentified |
Off |
Network connection is broken |
|
LED2 |
Unidentified |
On |
Data is being received or transmitted |
|
LED2 |
Unidentified |
Off |
Data is not being received or transmitted |
|
|
|
|
 |
|
