UNIDENTIFIED

486/33

Processor	80486DX
Processor Speed	33MHz
Chip Set	OPTI
Max. Onboard DRAM	32MB
Cache	None
BIOS	AMI
Dimensions	330mm x 218mm
I/O Options	None
NPU Options	4167

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J4	Speaker	J22
Power LED & keylock	J21	Reset switch	SW2

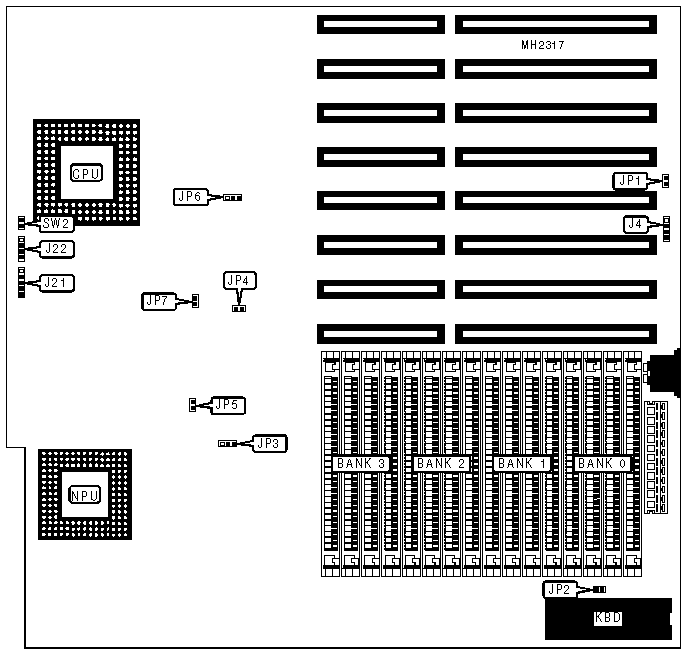

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Battery type select internal	JP1	Closed
	Battery type select external	JP1	Open
»	Monitor type select monochrome	JP2	Open
	Monitor type select color enabled	JP2	Closed
»	Factory configured - do not alter	JP3	pins 2 & 3 closed
»	Factory configured - do not alter	JP4	pins 1 & 2 closed
»	Factory configured - do not alter	JP5	Open
»	Factory configured - do not alter	JP6	pins 2 & 3 closed
»	Factory configured - do not alter	JP7	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
1MB	(4) 256K x 9	NONE	NONE	NONE
2MB	(4) 256K x 9	(4) 256K x 9	NONE	NONE
3MB	(4) 256K x 9	(4) 256K x 9	(4) 256K x 9	NONE
4MB	(4) 256K x 9	(4) 256K x 9	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE	NONE	NONE
6MB	(4) 256K x 9	(4) 256K x 9	(4) 1M x 9	NONE
8MB	(4) 1M x 9	(4) 1M x 9	NONE	NONE
10MB	(4) 256K x 9	(4) 256K x 9	(4) 1M x 9	(4) 1M x 9
16MB	(4) 1M x 9	(4) 1M x 9	(4) 1M x 9	(4) 1M x 9
32MB	(4) 4M x 9	(4) 4M x 9	NONE	NONE
