OCEAN INFORMATION SYSTEMS, INC.

PANTHER-2

Processor	80386SX
Processor Speed	16/20/25/33MHz
Chip Set	OPTI
Max. onboard DRAM	16MB
SRAM Cache	None
BIOS	AMI
Dimensions	220mm x 220mm
I/O Options	None
NPU Options	80387SX

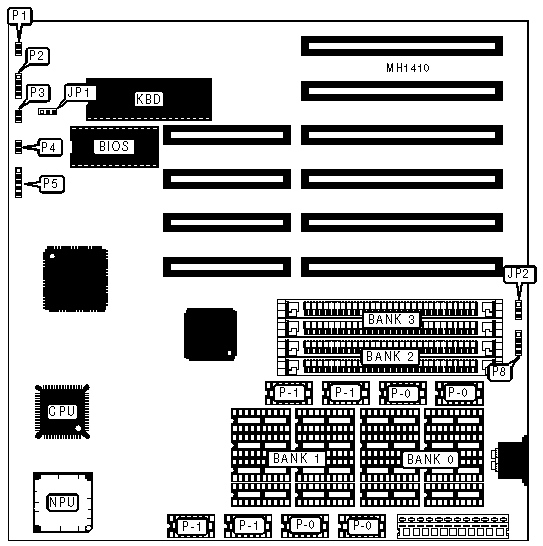

CONNECTIONS
Purpose	Location	Purpose	Location
Reset switch	P1	Turbo LED	P4
Speaker	P2	Power LED & keylock	P5
Turbo switch	P3	External battery	P8

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Monitor type select monochrome	JP1	pins 1 & 2 closed
	Monitor type select color	JP1	pins 2 & 3 closed
»	CMOS memory normal operation	JP2	pins 1 & 2 closed
	CMOS memory clear	JP2	pins 2 & 3 closed

DRAM CONFIGURATION
Size	Bank 0	P-0	Bank 1	P-1	Bank 2	Bank 3
1MB	(8) 44256	(4) 41256	NONE	NONE	NONE	NONE
2MB	(8) 44256	(4) 41256	(8) 44256	(4) 41256	NONE	NONE
2MB	NONE	NONE	NONE	NONE	(2) 1M x 9	NONE
4MB	NONE	NONE	NONE	NONE	(2) 1M x 9	(2) 1M x 9
10MB	NONE	NONE	NONE	NONE	(2) 1M x 9	(2) 4M x 9
16MB	NONE	NONE	NONE	NONE	(2) 4M x 9	(2) 4M x 9
