CACHE 304 Motherboard Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Motherboards / Motherboards / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
CACHE 304 Motherboard Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
CACHE COMPUTERS, INC.
CACHE 304
|
Processor |
80386DX |
|
Processor Speed |
16/20MHz |
|
Chip Set |
Unidentified |
|
Max. Onboard DRAM |
10MB |
|
Cache |
None |
|
BIOS |
Award |
|
Dimensions |
355mm x 304mm |
|
I/O Options |
None |
|
NPU Options |
80387 |
|

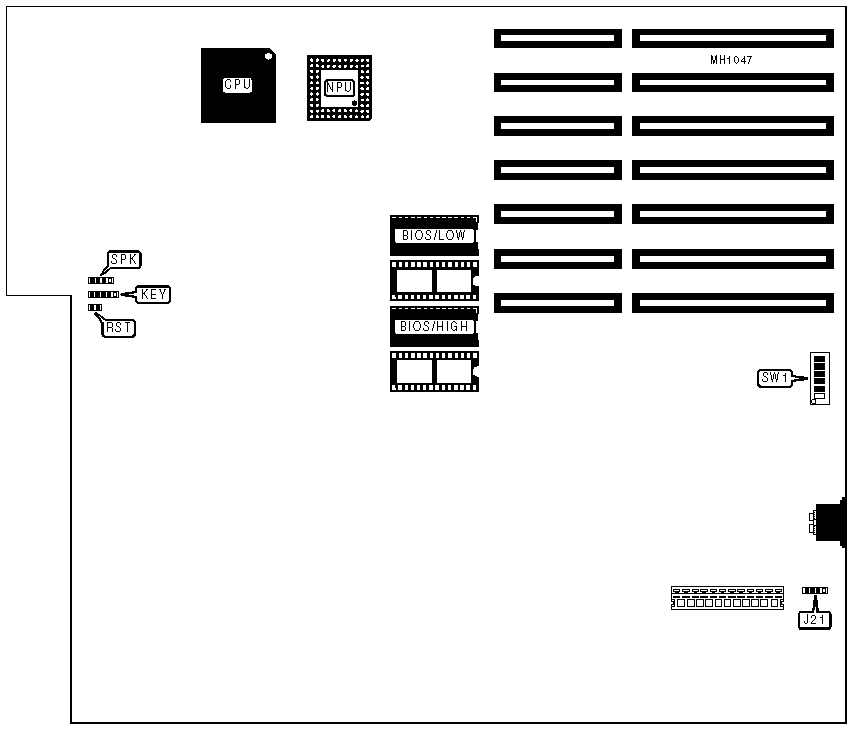

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
External battery |
J21 |
Reset switch |
RST |
|
Power LED & keylock |
KEY |
Speaker |
SPK |
|
Note:The location of expansion slots and memory is unidentified. | |||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Switch |
Position | |
| » |
Factory configured - do not alter |
SW1/1 |
On |
| » |
NPU disabled |
SW1/2 |
Off |
|
NPU enabled |
SW1/2 |
On | |
| » |
Factory configured - do not alter |
SW1/3 |
Off |
| » |
Factory configured - do not alter |
SW1/4 |
Off |
| » |
Factory configured - do not alter |
SW1/5 |
Off |
| » |
Monitor type select color |
SW1/6 |
On |
|
Monitor type select monochrome |
SW1/6 |
Off | |
