RAD DATA COMMUNICATIONS
SRM-6AV (RJ-45)
Card Type | Short Range Modem |
Chip Set | Unidentified |
I/O Options | DTE/DCE serial port (25-pin connector) network interface via RJ-45 |
Wiring Type | Unshielded twisted pair |
Maximum Data Rate | 115.2Kbps |
Data Bus | External |
CONNECTIONS | ||||||
Function | Label | Function | Label | |||
25-pin serial port | CN1 | RJ-45 connector | CN2 | |||
Note: The SRM-6AV is available with either a male or female 25-pin port. |

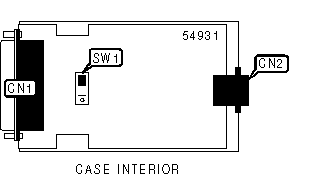

USER CONFIGURABLE SETTINGS | ||
Setting | Label | Position |
í DCE mode | SW1 | Off |
DTE mode | SW1 | On |
