IBM CORPORATION
EASY OPTIONS 14.4KBPS INTERNAL MODEM MOD535
|
Card Type |
Fax, Modem (asynchronous/synchronous) |
|
Chip Set |
Unidentified |
|
Maximum Data Rate |
14.4Kbps |
|
Maximum Fax Rate |
14.4Kbps |
|
Data Bus |
8-bit ISA |
|
Fax Class |
Class I |
|
Data Modulation Protocol |
Bell 103/212A ITU-T V.21, V.22, V.22bis, V.32, V.32bis |
|
Fax Modulation Protocol |
ITU-T V.17, V.21CH2, V.27ter, V.29 |
|
Error Correction/Compression |
MNP5, V.42bis |
|

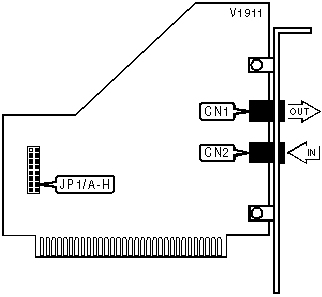

CONNECTIONS | ||||||
|
Function |
Label |
Function |
Label | |||
|
Line out |
CN1 |
Line in |
CN2 | |||
|
SERIAL PORT ADDRESS | ||||
|
Setting |
JP1/A |
JP1/B |
JP1/C |
JP1/D |
|
í COM1 (3F8h) |
Closed |
Open |
Open |
Open |
|
COM2 (2F8h) |
Open |
Closed |
Open |
Open |
|
COM3 (3E8h) |
Open |
Open |
Closed |
Open |
|
COM4 (2E8h) |
Open |
Open |
Open |
Closed |
|
INTERRUPT | ||||
|
Setting |
JP1/E |
JP1/F |
JP1/G |
JP1/H |
|
3 |
Closed |
Open |
Open |
Open |
|
í 4 |
Open |
Closed |
Open |
Open |
|
5 |
Open |
Open |
Closed |
Open |
|
7 |
Open |
Open |
Open |
Closed |
Proprietary AT Command Set
See document V1910 for a full command summary.
|
|
|
|
 |
|
