2000 SERIES ADAPTER-U modem/telephone/ISDN Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ARLOTTO TECHNOLOGIES, INC
2000 SERIES ADAPTER-U
|
Card Type |
ISDN card |
|
ISDN Transfer Rate |
64Kbps x 2 |
|
Wiring Type |
Unshielded twisted pair |
|
ISDN Protocol |
HDLC |
|
Switch Type |
5ESS, DMS-100, ISDN-1 |
|
Data Bus |
16-bit ISA |
|

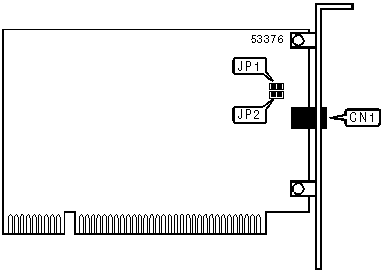

CONNECTIONS | |
|
Function |
Label |
|
RJ-11 Unshielded twisted pair |
CN1 |
|
MISCELLANEOUS TECHNICAL NOTES |
|
JP1 and JP2 are factory configured, do not alter. |
|
|
|
|
 |
|
