APC-H250K Memory card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Memory Cards / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
APC-H250K Memory card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
NEC TECHNOLOGIES, INC.
APC-H250K
|
Card Type |
Memory |
|
Chipset |
Unidentified |
|
Maximum Onboard Memory |
3MB DRAM |
|
Data Bus |
Proprietary |
|

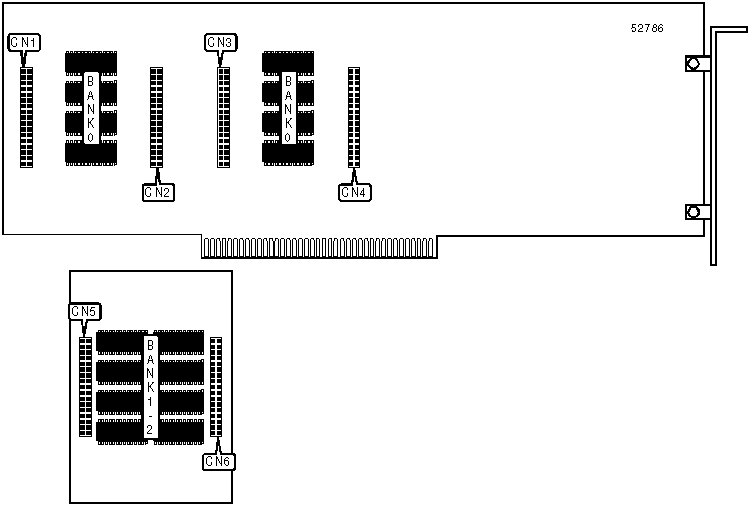

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Header for Bank 2 module |
CN1 |
Header for Bank 1 module |
CN4 |
|
Header for Bank 2 module |
CN2 |
Header to main board |
CN5 |
|
Header for Bank 1 module |
CN3 |
Header to main board |
CN6 |
|
DRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
1MB |
(8) 128KB |
None |
None |
|
2MB |
(8) 128KB |
(8) 128KB |
None |
|
3MB |
(8) 128KB |
(8) 128KB |
(8) 128KB |
|
|
|
|
 |
|
